How to flush a water heater

Many people are not aware that there is preventative maintenance involved when it comes to water heaters. In this article I will discuss how to flush a water heater. It is important to do this at least once a year to help extend the life of your water heater. Flushing a water heater will help remove the sediment that builds up in in the bottom of the tanks. It is important to know that water heaters were designed to be housed indoors. Although I have seen a few water heaters mounted outside over the years, and it’s not recommended by any manufacturers. They usually are not covered by warranty if they are installed outdoors. Most water heaters will leak enough to destroy the burner. Some people opt to have a drain pain under the water heater to help catch that water that might rust through or leak. Just be warned that a filled water heater contains a lot of water. A little tray will not be able to contain everything if the whole water heater ruptured. An aftermarket water alarm is a handy device that will alert you if it becomes wet. They can be placed inside the drain pan to help monitor if the water heater were to start leaking.

In order to properly flush a water heater. You will need to turn off the heat source. That means you will need to turn off the gas valve or turn off the breaker if it is electric. Your water heater will ruin if you don’t turn it off before emptying it. Next step is to turn off the water fill valve on the inlet pipe. If you don’t have a shut off valve on the water inlet. Then you will need to locate a water main valve that feeds that area or the entire building. You will need to attach a garden hose to the bottom of the water tank. Make sure your hose has the proper seal to prevent leaks and is adequate in length. Direct the hose to a location that will not damage from rusty water and sediment. Open the valve on top of the hose with a screwdriver or pair of pliers.

Once the water heater has emptied. You can close the hose valve, and open the water inlet valve again. Once the water heater is filled again. Then you can light the pilot light, and let water heater resume it’s normal job. Most gas water heaters are difficult to relight once the pilot light is extinguished. It usually takes a few minutes to relight the to pilot light. If you can’t get the water heater back to normal operation or smell gas then you should stop immediately and contact a professional to assist you. I hope this article has helped explain to you what is needed to flush a water heater. Please contact us with any questions or comments at brooksdollar@gmail.com

Nifty Grower 100ft Garden Hose - All New Expandable Water Hose with Double Latex Core, 3/4Nifty Grower 100ft Garden Hose – All New Expandable Water Hose with Double Latex Core, 3/4Nifty Grower 100ft Garden Hose - All New Expandable Water Hose with Double Latex Core, 3/4Apex 8535-50, Medium Duty Garden Hose, 5/8-Inch by 50-FeetApex 8535-50, Medium Duty Garden Hose, 5/8-Inch by 50-FeetApex 8535-50, Medium Duty Garden Hose, 5/8-Inch by 50-FeetFlexzilla Garden Hose, 5/8 in. x 50 ft, Heavy Duty, Lightweight, Drinking Water Safe - HFZG550YWFlexzilla Garden Hose, 5/8 in. x 50 ft, Heavy Duty, Lightweight, Drinking Water Safe – HFZG550YWFlexzilla Garden Hose, 5/8 in. x 50 ft, Heavy Duty, Lightweight, Drinking Water Safe - HFZG550YWCamco 11360 24Camco 11360 24Camco 11360 24Camco 11480 24Camco 11480 24Camco 11480 24Camco 20922 Water Heater Drain Pan, 24-Inch x 24-Inch x 4-InchCamco 20922 Water Heater Drain Pan, 24-Inch x 24-Inch x 4-InchCamco 20922 Water Heater Drain Pan, 24-Inch x 24-Inch x 4-InchOatey 34151 Aluminum Water Heater Pan with 1-Inch Fitting, 20-InchOatey 34151 Aluminum Water Heater Pan with 1-Inch Fitting, 20-InchOatey 34151 Aluminum Water Heater Pan with 1-Inch Fitting, 20-InchGlentronics, Inc. BWD-HWA Basement Watchdog Water Sensor and AlarmGlentronics, Inc. BWD-HWA Basement Watchdog Water Sensor and AlarmGlentronics, Inc. BWD-HWA Basement Watchdog Water Sensor and AlarmWater Alarm and Sensor for Water Leakage Detection, Sensitive Flood Alarm, Battery Included, LA Homieta WA08Water Alarm and Sensor for Water Leakage Detection, Sensitive Flood Alarm, Battery Included, LA Homieta WA08Water Alarm and Sensor for Water Leakage Detection, Sensitive Flood Alarm, Battery Included, LA Homieta WA08Instapark IN07A Battery-Powered Water Leakage Detection Alarm and Sensor, 130 dB, 3 Pack Batteries IncludedInstapark IN07A Battery-Powered Water Leakage Detection Alarm and Sensor, 130 dB, 3 Pack Batteries IncludedInstapark IN07A Battery-Powered Water Leakage Detection Alarm and Sensor, 130 dB, 3 Pack Batteries IncludedTEKTON 26635 5/16-Inch Slotted by 8-Inch ScrewdriverTEKTON 26635 5/16-Inch Slotted by 8-Inch ScrewdriverTEKTON 26635 5/16-Inch Slotted by 8-Inch ScrewdriverChannellock 440 12-Inch Tongue and Groove PlierChannellock 440 12-Inch Tongue and Groove PlierChannellock 440 12-Inch Tongue and Groove Plier

How to change your engine oil

In this this article, I will discuss how to change your engine oil in order to keep your ride running smoothly. It is important to maintain your engine oil while running up the miles on your odometer. There are a few important things that you will need to know when replacing the engine oil.

Torin Big Red Steel Scissor Jack, 1.5 Ton (3,000 lb) CapacityTorin Big Red Steel Scissor Jack, 1.5 Ton (3,000 lb) CapacityTorin Big Red Steel Scissor Jack, 1.5 Ton (3,000 lb) CapacityPro Lift F-767 Grey Low Profile Floor Jack - 2 Ton CapacityPro Lift F-767 Grey Low Profile Floor Jack – 2 Ton CapacityPro Lift F-767 Grey Low Profile Floor Jack - 2 Ton CapacityBlackhawk B6350 Black/Red Fast Lift Service Jack - 3.5 Ton CapacityBlackhawk B6350 Black/Red Fast Lift Service Jack – 3.5 Ton CapacityBlackhawk B6350 Black/Red Fast Lift Service Jack - 3.5 Ton CapacityAmazonBasics Steel Jack Stands with 2 Ton CapacityAmazonBasics Steel Jack Stands with 2 Ton CapacityAmazonBasics Steel Jack Stands with 2 Ton CapacityRhinoGear 11909ABMI RhinoRamps Vehicle Ramp - Set of 2 (12,000lb. GVW Capacity)RhinoGear 11909ABMI RhinoRamps Vehicle Ramp – Set of 2 (12,000lb. GVW Capacity)RhinoGear 11909ABMI RhinoRamps Vehicle Ramp - Set of 2 (12,000lb. GVW Capacity)Pro-Lift B-004D Grey Hydraulic Bottle Jack - 4 Ton CapacityPro-Lift B-004D Grey Hydraulic Bottle Jack – 4 Ton CapacityPro-Lift B-004D Grey Hydraulic Bottle Jack - 4 Ton CapacityYM W4194 Solid Rubber Wheel Chock with Handle, 8-3/4YM W4194 Solid Rubber Wheel Chock with Handle, 8-3/4YM W4194 Solid Rubber Wheel Chock with Handle, 8-3/4Hopkins 11930MI FloTool Heavy Duty Wheel Chocks, Set of 2Hopkins 11930MI FloTool Heavy Duty Wheel Chocks, Set of 2Hopkins 11930MI FloTool Heavy Duty Wheel Chocks, Set of 2Camco 44414 Wheel Chock Without Rope, Helps Keep Your Trailer RV In Place (Pack of 2)Camco 44414 Wheel Chock Without Rope, Helps Keep Your Trailer RV In Place (Pack of 2)Camco 44414 Wheel Chock Without Rope, Helps Keep Your Trailer RV In Place (Pack of 2)

First thing I like to do when changing the engine oil is to gather the required materials. You can call your local auto parts store with your year, make, model, and engine size. They will be able to set you up with the proper supplies for your vehicle. You should ask the part employee to check the engine oil capacity specification if you need to know how much oil is required. Most scenarios I will opt for a deal that the store will have with 5 quarts of oil and a oil filter. They will ask you if you would like conventional or synthetic oil. Conventional oil needs to be changed more frequently due to the viscosity breaking down from engine wear and tear. Synthetic oil is changed less frequently due the fact that it does not break down from engine wear. You still need to change your synthetic oil due to the fact of it getting dirty. Once you make the change and fill your engine with synthetic oil. Then I personally would not put conventional oil back in. Some Oil brands sell a synthetic blend oil.

Lumax LX-1632 Black 15 Quart Drainmaster Drain Pan and Waste Oil StorageLumax LX-1632 Black 15 Quart Drainmaster Drain Pan and Waste Oil StorageLumax LX-1632 Black 15 Quart Drainmaster Drain Pan and Waste Oil StorageCustom Accessories 31118 Oil Drain PanCustom Accessories 31118 Oil Drain PanCustom Accessories 31118 Oil Drain PanHopkins 11838 FloTool 15-Quart Oil DrainHopkins 11838 FloTool 15-Quart Oil DrainHopkins 11838 FloTool 15-Quart Oil DrainATD Tools 5184 Black Drain Pan - 4-1/2 Gallon CapacityATD Tools 5184 Black Drain Pan – 4-1/2 Gallon CapacityATD Tools 5184 Black Drain Pan - 4-1/2 Gallon CapacityNeeda Parts 653096 Oil Drain Plug and Gasket for GMNeeda Parts 653096 Oil Drain Plug and Gasket for GMNeeda Parts 653096 Oil Drain Plug and Gasket for GMDorman 65230 AutoGrade Oil Drain PlugDorman 65230 AutoGrade Oil Drain PlugDorman 65230 AutoGrade Oil Drain PlugMotivx Tools Toyota Oil Filter Wrench for 1.8 Liter Prius, Prius V, Corolla, Matrix, Lexus CT200h, Scion iM, iQ & xDMotivx Tools Toyota Oil Filter Wrench for 1.8 Liter Prius, Prius V, Corolla, Matrix, Lexus CT200h, Scion iM, iQ & xDMotivx Tools Toyota Oil Filter Wrench for 1.8 Liter Prius, Prius V, Corolla, Matrix, Lexus CT200h, Scion iM, iQ & xDMotivx Tools Volvo Oil Filter Wrench for 86mm Cartridge Style Filter Housing CapsMotivx Tools Volvo Oil Filter Wrench for 86mm Cartridge Style Filter Housing CapsMotivx Tools Volvo Oil Filter Wrench for 86mm Cartridge Style Filter Housing CapsJDMON Oil Filter Wrench for 2.5 L to 5.7 L Engines Lexus Toyota Lexus Highlander Camry RAV4 and More –Fit 64mm 14 Flutes Cartridge Style Oil Filter Housing with A Pair of GlovesJDMON Oil Filter Wrench for 2.5 L to 5.7 L Engines Lexus Toyota Lexus Highlander Camry RAV4 and More –Fit 64mm 14 Flutes Cartridge Style Oil Filter Housing with A Pair of GlovesJDMON Oil Filter Wrench for 2.5 L to 5.7 L Engines Lexus Toyota Lexus Highlander Camry RAV4 and More –Fit 64mm 14 Flutes Cartridge Style Oil Filter Housing with A Pair of GlovesQbreloh 74mm Oil Filter Wrench for Mercedes, Audi, VW, Porsche, Sprinter and Mazda -3/8Qbreloh 74mm Oil Filter Wrench for Mercedes, Audi, VW, Porsche, Sprinter and Mazda -3/8Qbreloh 74mm Oil Filter Wrench for Mercedes, Audi, VW, Porsche, Sprinter and Mazda -3/8Craftsman 2 Piece 16 Inch Rubber Strap Wrench Set, 9-45570Craftsman 2 Piece 16 Inch Rubber Strap Wrench Set, 9-45570Craftsman 2 Piece 16 Inch Rubber Strap Wrench Set, 9-45570Titan Tools 21315 12Titan Tools 21315 12Titan Tools 21315 12

If you have a vehicle that is low to the ground then you will need to jack up the vehicle to a acceptable height. I will always recommend putting a jack stand underneath the vehicle and wheel chocks for a safety perspective. You don’t want to have a mishap where the car falls on you or someone else. Next you should position the drain pan and remove the oil drain plug. Collect the oil into a container with a lid to bring back to the store. The auto parts stores usually have a used engine oil collection tank. I recommend replacing the engine oil drain plug after the oil is fully drained so you don’t forget to put it back in later. Remember to not over tighten the plug, or you will strip out the threads in the oil pan. Next you need to remove and replace the engine oil filter. I will always dip my finger in the used engine oil and pre lubricate the O Rings on the oil filter to ensure a snug fit. Only use your hand to tighten the oil filter back on to ensure you will be able to remove it next time.  You are now ready to put fresh engine oil back in to your engine with a funnel. Please refer to the engine oil capacity specification that you asked the auto parts store employee to know how much oil you need to put in the engine.

Auto-Mechanic Shop towels, Rags by Nabob Wipers 100% Cotton Commercial Grade Perfect for your Home Garage & Auto Body Shop (14x14) inches, 25 Pack, (Red)Auto-Mechanic Shop towels, Rags by Nabob Wipers 100% Cotton Commercial Grade Perfect for your Home Garage & Auto Body Shop (14×14) inches, 25 Pack, (Red)Auto-Mechanic Shop towels, Rags by Nabob Wipers 100% Cotton Commercial Grade Perfect for your Home Garage & Auto Body Shop (14x14) inches, 25 Pack, (Red)OIL DRI I05090 50 lb Oil AbsorbentOIL DRI I05090 50 lb Oil AbsorbentOIL DRI I05090 50 lb Oil AbsorbentOil-Dri I05000-G60 Quicksorb Fine Granular Clay Absorbent Bucket, 20 lbsOil-Dri I05000-G60 Quicksorb Fine Granular Clay Absorbent Bucket, 20 lbsOil-Dri I05000-G60 Quicksorb Fine Granular Clay Absorbent Bucket, 20 lbsOil Dri L70320 put over the spill white Quick-Sorb Oil pad, tablet of 20, 15Oil Dri L70320 put over the spill white Quick-Sorb Oil pad, tablet of 20, 15Oil Dri L70320 put over the spill white Quick-Sorb Oil pad, tablet of 20, 15Dust Pan and Broom Combo Set/Standing Upright Dustpan with 40Dust Pan and Broom Combo Set/Standing Upright Dustpan with 40Dust Pan and Broom Combo Set/Standing Upright Dustpan with 40O-Cedar Angler Angle Broom With Dust PanO-Cedar Angler Angle Broom With Dust PanO-Cedar Angler Angle Broom With Dust Pan

Mini Motorcross Kids Dirt Bikes Prices Start at $369. Shop Now

How to install security cameras

Smarthome.com - shop now!
With technology prices dropping and crime always present. I recommend everyone installing some security cameras to the exterior of your home to provide some piece of mind. In this article I will write about how to install security cameras.

Swann SWDVK-849808 Super HD 5MP Security System, 8 Channel 2TB DVR with 8 x PIR Surveillance Kit, WhiteSwann SWDVK-849808 Super HD 5MP Security System, 8 Channel 2TB DVR with 8 x PIR Surveillance Kit, WhiteSwann SWDVK-849808 Super HD 5MP Security System, 8 Channel 2TB DVR with 8 x PIR Surveillance Kit, WhiteSwann SWDVK-845804-US FULL HD (1920 x 1080p) Surveillance Camera System, 8 Channel 1TB DVR, WhiteSwann SWDVK-845804-US FULL HD (1920 x 1080p) Surveillance Camera System, 8 Channel 1TB DVR, WhiteSwann SWDVK-845804-US FULL HD (1920 x 1080p) Surveillance Camera System, 8 Channel 1TB DVR, WhiteSwann 8 Channel Security System SWDVK-845808 1080p Full HD DVR-4575 with 1TB HDD & 8 x 1080p Thermal Sensing Cameras PRO-1080MSBSwann 8 Channel Security System SWDVK-845808 1080p Full HD DVR-4575 with 1TB HDD & 8 x 1080p Thermal Sensing Cameras PRO-1080MSBSwann 8 Channel Security System SWDVK-845808 1080p Full HD DVR-4575 with 1TB HDD & 8 x 1080p Thermal Sensing Cameras PRO-1080MSB

The first thing I like to take into consideration when setting up cameras is knowing how many cameras you would like, and if they will need to be wireless or wired. Wireless cameras will need a 120v power outlet next to where you mount the camera. It is important to remember that wireless cameras have a maximum distance for effective broadcasting, and their picture quality diminishes the farther away they get. Wired cameras will need a run of wire from where the camera is mounted to the DVR. I prefer homes with attics or businesses with drop ceilings when putting in wired systems. It is also smart to locate the DVR next to where the router will be located in order to be hardwired in. My three favorite brands to set up are Swann, Night Owl, and Zmodo.

Night Owl WM-8HD10L-4720 8CH W/4CAMERASNight Owl WM-8HD10L-4720 8CH W/4CAMERASNight Owl WM-8HD10L-4720 8CH W/4CAMERASNight Owl Security HD201-86P-B Video Security Camera DVR with 1 TB HDD & 6 x 1080p Wired Infrared, WhiteNight Owl Security HD201-86P-B Video Security Camera DVR with 1 TB HDD & 6 x 1080p Wired Infrared, WhiteNight Owl Security HD201-86P-B Video Security Camera DVR with 1 TB HDD & 6 x 1080p Wired Infrared, WhiteNight Owl Security, 8 Channel 1080 Lite HD Analog Video Security System with 1 TB HDD and 8 x 1080p HD Wired Cameras (White)Night Owl Security, 8 Channel 1080 Lite HD Analog Video Security System with 1 TB HDD and 8 x 1080p HD Wired Cameras (White)Night Owl Security, 8 Channel 1080 Lite HD Analog Video Security System with 1 TB HDD and 8 x 1080p HD Wired Cameras (White)Night Owl CL-HDA30-161022P-B 16 Channel 3MP Extreme HD Video Security System with 2 TB HDD & 8x3MP Bullet Cameras, WhiteNight Owl CL-HDA30-161022P-B 16 Channel 3MP Extreme HD Video Security System with 2 TB HDD & 8x3MP Bullet Cameras, WhiteNight Owl CL-HDA30-161022P-B 16 Channel 3MP Extreme HD Video Security System with 2 TB HDD & 8x3MP Bullet Cameras, WhiteNight Owl Security WMBF-445-720 4 Channel 720p HD Video System Indoor/Outdoor (White)Night Owl Security WMBF-445-720 4 Channel 720p HD Video System Indoor/Outdoor (White)Night Owl Security WMBF-445-720 4 Channel 720p HD Video System Indoor/Outdoor (White)Night Owl 16-Channel 1080p Security System with 1 TB Hard Drive, 8x 1080p Bullet Cameras, and 100 Night VisionNight Owl 16-Channel 1080p Security System with 1 TB Hard Drive, 8x 1080p Bullet Cameras, and 100 Night VisionNight Owl 16-Channel 1080p Security System with 1 TB Hard Drive, 8x 1080p Bullet Cameras, and 100 Night Vision

Although there are numerous advantages of the newer camera systems then the older ones. I think the best feature of the newer security camera systems is that they give you the ability to view your cameras on your smartphone or tablet through their respective apps.  Some of the systems have the ability to notify you when their is motion.  The systems will start recording when there is motion for later viewing. You can go back in the archives of the DVR, and view the cameras whenever there was motion present.

Zmodo 8CH HDMI NVR Simplified PoE Surveillance Video Security Camera System With 8x720p HD Weatherproof Cameras 1TB HD Remote Access Motion DetectionZmodo 8CH HDMI NVR Simplified PoE Surveillance Video Security Camera System With 8x720p HD Weatherproof Cameras 1TB HD Remote Access Motion DetectionZmodo 8CH HDMI NVR Simplified PoE Surveillance Video Security Camera System With 8x720p HD Weatherproof Cameras 1TB HD Remote Access Motion DetectionZmodo Full HD 1080p Simplified PoE Security Camera System w/Repeater, 8 x 2.0 Megapixel IP Outdoor Surveillance Camera, 8CH HDMI NVR and 1TB Hard DriveZmodo Full HD 1080p Simplified PoE Security Camera System w/Repeater, 8 x 2.0 Megapixel IP Outdoor Surveillance Camera, 8CH HDMI NVR and 1TB Hard DriveZmodo Full HD 1080p Simplified PoE Security Camera System w/Repeater, 8 x 2.0 Megapixel IP Outdoor Surveillance Camera, 8CH HDMI NVR and 1TB Hard DriveZmodo 1080p HD NVR WiFi System 4 HD Outdoor and 4 HD Indoor 1.0 Megapixel Wide Angle Wireless Security Camera with 500GB Hard Drive, Intelligent Recording, Smart Motion Detection, Web AccessZmodo 1080p HD NVR WiFi System 4 HD Outdoor and 4 HD Indoor 1.0 Megapixel Wide Angle Wireless Security Camera with 500GB Hard Drive, Intelligent Recording, Smart Motion Detection, Web AccessZmodo 1080p HD NVR WiFi System 4 HD Outdoor and 4 HD Indoor 1.0 Megapixel Wide Angle Wireless Security Camera with 500GB Hard Drive, Intelligent Recording, Smart Motion Detection, Web AccessZmodo 8CH Wireless Security Camera System - 1080P HDMI NVR with 500GB Hard Drive, 4 x 720P HD Wireless Cameras Night Vision - WiFi Easy Installation No Video Cables Needed (Certified Refurbished)Zmodo 8CH Wireless Security Camera System – 1080P HDMI NVR with 500GB Hard Drive, 4 x 720P HD Wireless Cameras Night Vision – WiFi Easy Installation No Video Cables Needed (Certified Refurbished)Zmodo 8CH Wireless Security Camera System - 1080P HDMI NVR with 500GB Hard Drive, 4 x 720P HD Wireless Cameras Night Vision - WiFi Easy Installation No Video Cables Needed (Certified Refurbished)Zmodo Wireless Security Camera System (2 pack) Smart HD WiFi IP Cameras with Night VisionZmodo Wireless Security Camera System (2 pack) Smart HD WiFi IP Cameras with Night VisionZmodo Wireless Security Camera System (2 pack) Smart HD WiFi IP Cameras with Night Vision

It is important to remember that some of the corners of the attic may be hard to squeeze into when running wires for the cameras. I will drill a small hole in the eave of the house for the wire and push a fish tape through the hole to retrieve the wire in the hard to reach spots. This technique will make your life much easier when running the wires. Please email us if you have any questions or concerns, and we can update this article accordingly. dollarmech@gmail.com
Smarthome.com - shop now!

How to wire a home AC thermostat

Many homeowners are handy, but tend to get confused when it comes to their home AC system. In this article I will go over how to wire a home AC thermostat. First you will have to choose a AC thermostat to satisfy your personal needs. Whether you decide on choosing a Programmable or Non Programmable thermostat. They are wired the same way. Some of the newer Smart thermostats have Wifi compatibility so you can control the units with your smartphone or computer while away from the house. These thermostats usually require a Common Wire. So it is smart to look at the existing thermostat wiring if you don’t want to rewire a thermostat wire from the unit to the thermostat. Common wire is usually black, but I have seen different colors used. Common wire is attached to the common side of the 24v transformer that the red wire is attached to.

Thermostat wiring colors

Red – 24v POWER from transformer
Green – Fan
Yellow – Cooling (compressor/outdoor fan)
White – Heating (Gas Furnace or Electrical Heat Strips, Optional)
Orange – Heating (Heat Pump with a Reversing Valve, Optional)
Blue – Heating (Heating on Rheem and Ruud units)
Black – 24v Common from transformer

Nest (T3007ES) Learning Thermostat, Easy Temperature Control for Every Room in Your House, Stainless Steel (Third Generation), Works with AlexaNest (T3007ES) Learning Thermostat, Easy Temperature Control for Every Room in Your House, Stainless Steel (Third Generation), Works with AlexaNest (T3007ES) Learning Thermostat, Easy Temperature Control for Every Room in Your House, Stainless Steel (Third Generation), Works with Alexaecobee4 Alexa-Enabled Thermostat with Sensor, Works with Amazon Alexaecobee4 Alexa-Enabled Thermostat with Sensor, Works with Amazon Alexaecobee4 Alexa-Enabled Thermostat with Sensor, Works with Amazon Alexaecobee3 lite Smart Thermostat (2nd Gen), Works with Amazon Alexaecobee3 lite Smart Thermostat (2nd Gen), Works with Amazon Alexaecobee3 lite Smart Thermostat (2nd Gen), Works with Amazon AlexaHoneywell RCHT8610WF2006 Lyric T5 Wi-Fi Smart 7 Day Programmable Touchscreen Thermostat with Geofencing, Requires C Wire, Works with AlexaHoneywell RCHT8610WF2006 Lyric T5 Wi-Fi Smart 7 Day Programmable Touchscreen Thermostat with Geofencing, Requires C Wire, Works with AlexaHoneywell RCHT8610WF2006 Lyric T5 Wi-Fi Smart 7 Day Programmable Touchscreen Thermostat with Geofencing, Requires C Wire, Works with AlexaHoneywell RTH9585WF1004/W Wi-Fi Smart Color Programmable Thermostat, V. 2.0,Honeywell RTH9585WF1004/W Wi-Fi Smart Color Programmable Thermostat, V. 2.0,Honeywell RTH9585WF1004/W Wi-Fi Smart Color Programmable Thermostat, V. 2.0,Honeywell TH9320WF5003 Wi-Fi 9000 Color Touch Screen Programmable Thermostat, 3.5 x 4.5 Inch, White, 'Requires C WireHoneywell TH9320WF5003 Wi-Fi 9000 Color Touch Screen Programmable Thermostat, 3.5 x 4.5 Inch, White, ‘Requires C WireHoneywell TH9320WF5003 Wi-Fi 9000 Color Touch Screen Programmable Thermostat, 3.5 x 4.5 Inch, White, 'Requires C WireHoneywell TH6210U2001/U T6 Pro Programmable Thermostat, 2 Heat/1 Cool Heat Pump Or 1 Heat/1 Cool ConventionalHoneywell TH6210U2001/U T6 Pro Programmable Thermostat, 2 Heat/1 Cool Heat Pump Or 1 Heat/1 Cool ConventionalHoneywell TH6210U2001/U T6 Pro Programmable Thermostat, 2 Heat/1 Cool Heat Pump Or 1 Heat/1 Cool ConventionalLux Products TX9600TS Universal 7-Day Programmable Touch Screen ThermostatLux Products TX9600TS Universal 7-Day Programmable Touch Screen ThermostatLux Products TX9600TS Universal 7-Day Programmable Touch Screen ThermostatEmerson UP310 Premium 7 Day Programmable ThermostatEmerson UP310 Premium 7 Day Programmable ThermostatEmerson UP310 Premium 7 Day Programmable ThermostatHoneywell TH3110D1008 Pro Non-Programmable Digital ThermostatHoneywell TH3110D1008 Pro Non-Programmable Digital ThermostatHoneywell TH3110D1008 Pro Non-Programmable Digital ThermostatHoneywell RTH221B1021/E1 RTH221B1021/A 1 Week Programmable ThermostatHoneywell RTH221B1021/E1 RTH221B1021/A 1 Week Programmable ThermostatHoneywell RTH221B1021/E1 RTH221B1021/A 1 Week Programmable ThermostatHoneywell CT87K The RoundHeat Only Manual ThermostatHoneywell CT87K The RoundHeat Only Manual ThermostatHoneywell CT87K The RoundHeat Only Manual Thermostat

When removing the cover of your old home AC thermostat you will see wires coming from the wall. Try to avoid breaking the wires when removing the old thermostat. REMEMBER THAT THE RED WIRE IS HOT!  I recommend disconnecting the power of the unit if you are a novice electrician. You could possibly burn out a small fuse or pop a micro circuit breaker on the transformer.  I tend to replace the thermostats really quickly without disconnecting power, but I have changed hundreds of thermostats and deal with different electrical wires daily. You just have to be careful with where the metal ends of the wire touch. I recommend installing the red wire first to get it out of the way. Going from one thermostat base directly into the other one. Green wire controls the indoor fan. Yellow wire controls the outdoor unit compressor and outdoor fan motor. White wire is usually used for gas furnaces or electrical heating. Orange wire is used for heat pump units, and it activates the reversing valve. Reversing valve changes the flow of the refrigerant. Blue wire is used on some units for heating. Black wire is almost always common. It is attached to the common side of the 24v transformer that the red wire is attached to.

After attaching the wires and reattaching the face plate. It is important to finish the steps in the instructions that came with the home AC thermostat. The newer Smart thermostats will have a series of questions to answer. It is important to answer the questions to the best of your ability. After you are done with the set up questions. I recommend testing the unit in the different modes to ensure that the wiring is correct. I will always test in cooling and heating to prevent a call back.  If you have any questions about your home AC thermostat. Feel free to send us questions at dollarmech@gmail.com

Get your AC ready for summer!

Air conditioners are the most crucial part of the home or business during the summer months. It is imperative to get ready for the coming summer temperatures. In this article I will go over a few things to look at on your Air Conditioner to get your AC ready for summer.

Excelvan M6013 Digital Auto Ranging Capacitance Meter Capacitor Tester Professional 0.01pF to 470000uFExcelvan M6013 Digital Auto Ranging Capacitance Meter Capacitor Tester Professional 0.01pF to 470000uFExcelvan M6013 Digital Auto Ranging Capacitance Meter Capacitor Tester Professional 0.01pF to 470000uFLCD Digital Meter XC6013L Capacitance Capacitor Tester mF uF Circuit Gauge Capacitance Meter TesterLCD Digital Meter XC6013L Capacitance Capacitor Tester mF uF Circuit Gauge Capacitance Meter TesterLCD Digital Meter XC6013L Capacitance Capacitor Tester mF uF Circuit Gauge Capacitance Meter TesterACM03 Digital Clamp Multimeter AC DC Current Voltage Resistance Capacitance Hz Meter Tester NCV FunctionACM03 Digital Clamp Multimeter AC DC Current Voltage Resistance Capacitance Hz Meter Tester NCV FunctionACM03 Digital Clamp Multimeter AC DC Current Voltage Resistance Capacitance Hz Meter Tester NCV Function

Capacitors are one of the most common things that go bad during the summer temperatures. You can prevent this by testing the capacitor Microfarad level by using a multimeter that is equipped with the feature. I recommend testing the indoor fan capacitor and outdoor fan capacitor. You can test the capacitor by removing one side of the circuit on the capacitor. Put the test leads of the multimeter across the top prongs of the capacitor. It should give you a microfarad reading of what the capacitor is rated for. So for example if you have a 12.5 microfarad capacitor. It would be most likely rated for plus or minus 6%.

12.5 x .06 = .75 So the capacitor shouldn’t be lower then 11.75 microfarads. Let’s say you have a capacitor that tested 11.13 microfarads. Then you would want to replace the capacitor with one that is within the range.

MARS - Motors & Armatures 12905 370V Oval 5 Micro-Farads Motor Run CapacitorMARS – Motors & Armatures 12905 370V Oval 5 Micro-Farads Motor Run CapacitorMARS - Motors & Armatures 12905 370V Oval 5 Micro-Farads Motor Run CapacitorMotor Run Capacitor, 370 Volt, Oval, 10 Micro-FaradsMotor Run Capacitor, 370 Volt, Oval, 10 Micro-FaradsMotor Run Capacitor, 370 Volt, Oval, 10 Micro-FaradsPowerWell 35 + 5 MFD uf PW-35/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 35/5 micro faradPowerWell 35 + 5 MFD uf PW-35/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 35/5 micro faradPowerWell 35 + 5 MFD uf PW-35/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 35/5 micro faradPowerWell 40 + 5 MFD uf PW-40/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 40/5 micro faradPowerWell 40 + 5 MFD uf PW-40/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 40/5 micro faradPowerWell 40 + 5 MFD uf PW-40/5/R 370 or 440 Volt Dual Run Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner 40/5 micro faradPowerWell 45+5 MFD 45/5 uf 370 or 440 Volt Dual Run Round Capacitor PW-45/5/R for Condenser Straight Cool or Heat Pump Air ConditionerPowerWell 45+5 MFD 45/5 uf 370 or 440 Volt Dual Run Round Capacitor PW-45/5/R for Condenser Straight Cool or Heat Pump Air ConditionerPowerWell 45+5 MFD 45/5 uf 370 or 440 Volt Dual Run Round Capacitor PW-45/5/R for Condenser Straight Cool or Heat Pump Air Conditioner

Most home AC’s use Dual run capacitors. These are two capacitors that are built in one. One is used to run the Compressor, and the other is used to run the outdoor fan motor. Capacitors are used in a electrical circuit to boost the amperage. So they can hold a charge when removed from the circuit. It is important to discharge the capacitor by putting a piece of metal between the sets of prongs on the top of the capacitor. I like to use a screwdriver.

Fan motors should be working without any excessive vibrations or bearing sounds. It is important to be careful of bending fan blades.  It is hard to repair a fan blade when a fan blade gets damaged. It is easier to just replace the fan blade with the exact same model of blade.

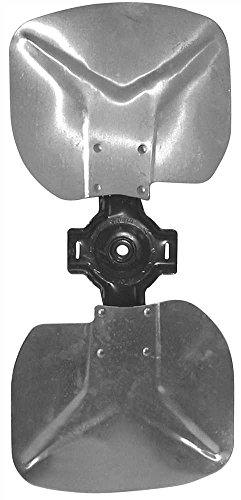

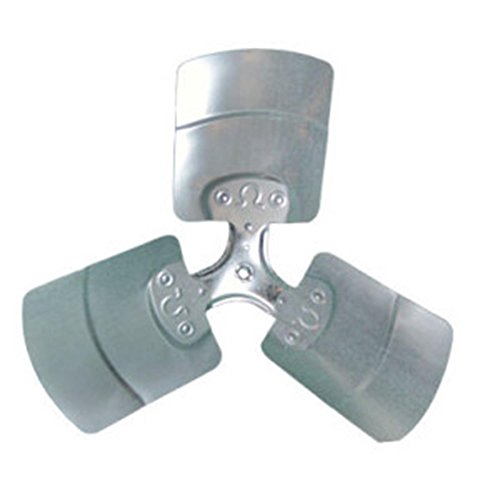

Goodman B1086756S Fan BladeGoodman B1086756S Fan BladeGoodman B1086756S Fan BladeLomanco 003 Power Blade VentLomanco 003 Power Blade VentLomanco 003 Power Blade VentFAN BLADES FOR EVAPORATOR MOTORS- 8FAN BLADES FOR EVAPORATOR MOTORS- 8FAN BLADES FOR EVAPORATOR MOTORS- 8A95231 Metal Fan Blade 9A95231 Metal Fan Blade 9A95231 Metal Fan Blade 9

Condenser coils get dirty over the years with dust and other things. You can spray off the coils with a garden hose to help remove the dirt. I recommend using a condenser coil cleaner if the coils are really dirty. Most common spray on cleaners will require water for the condenser coils and no water required for the evaporator coils. Since there is a build of condensation on the evap coils during operation that will rinse the chemical cleaners off.

Drain Dawg Regulator, Blow Gun, and Accessory Fitting KitDrain Dawg Regulator, Blow Gun, and Accessory Fitting KitDrain Dawg Regulator, Blow Gun, and Accessory Fitting KitDiversitech AP-DD Accessory Pack Drain DawgDiversitech AP-DD Accessory Pack Drain DawgDiversitech AP-DD Accessory Pack Drain DawgDiversitech AP-06 Drain DawgDiversitech AP-06 Drain DawgDiversitech AP-06 Drain DawgAC-Safe Foam Coil Cleaner - 19 ounce spray aerosol can: Cleans Evaporator and Condesor Coils, Fan Blades, and Reusable Air FiltersAC-Safe Foam Coil Cleaner – 19 ounce spray aerosol can: Cleans Evaporator and Condesor Coils, Fan Blades, and Reusable Air FiltersAC-Safe Foam Coil Cleaner - 19 ounce spray aerosol can: Cleans Evaporator and Condesor Coils, Fan Blades, and Reusable Air FiltersComStar 90-100 Coil King Professional Grade Concentrated Alkaline External Condenser Coil Cleaner, 1 gal Container, YellowComStar 90-100 Coil King Professional Grade Concentrated Alkaline External Condenser Coil Cleaner, 1 gal Container, YellowComStar 90-100 Coil King Professional Grade Concentrated Alkaline External Condenser Coil Cleaner, 1 gal Container, YellowAir Conditioner Condenser Fin and Refrigerator Coil Cleaning Whisk BrushAir Conditioner Condenser Fin and Refrigerator Coil Cleaning Whisk BrushAir Conditioner Condenser Fin and Refrigerator Coil Cleaning Whisk BrushNu-Calgon 4291-08 Nu-Brite, 1-GallonNu-Calgon 4291-08 Nu-Brite, 1-GallonNu-Calgon 4291-08 Nu-Brite, 1-Gallon

Most drains will get clogged over time with dirt, animal hair, and a sludge build up. I recommend checking the drains coming off the evap coils. You should clear the piping with water or compressed nitrogen if there is a clog. I like to use the drain dawg kit that has a long hose attached to a nitrogen regulator and tank.

Steps to winterize

Winter is coming!!! Now is time to get your systems ready for the colder temperatures if you haven’t done so already. In this article I will show you steps to winterize your units.  Many people don’t really think about their AC or evaporative coolers much after the summer months, but if you continue to do necessary maintenance steps. Then you can help prolong the life of your units, and that will help you save a few bucks eventually.
Smarthome Amazon Alexa 'works with'
Most units in Arizona that I come across are heat pump units. Meaning that they are built a special way in which they have a reversing valve. That will cause the hot air to blow across your indoor (evap) coils as opposed to usually leaving your outdoor (condenser) coil. Heat pumps usually are enough here in the desert since we only near freezing temperatures in the winter. Some heat pump units will have electrical heater strips as an addition to the heat pump operation. I have attached some examples of reversing valves below.

Brothers Heat Pump Reversing Valve 2.0 TonBrothers Heat Pump Reversing Valve 2.0 TonBrothers Heat Pump Reversing Valve 2.0 TonGoodman 0151M00019SP Goodman Reversing Valve And Coil (B1227316S)Goodman 0151M00019SP Goodman Reversing Valve And Coil (B1227316S)Goodman 0151M00019SP Goodman Reversing Valve And Coil (B1227316S)Goodman 0151R00071SP Reversing Valve (V6-414081-1GD) comes w/ BFKZ-053S Bi-Flow Filter DrierGoodman 0151R00071SP Reversing Valve (V6-414081-1GD) comes w/ BFKZ-053S Bi-Flow Filter DrierGoodman 0151R00071SP Reversing Valve (V6-414081-1GD) comes w/ BFKZ-053S Bi-Flow Filter DrierGoodman B1225017 24V Reversing Valve CoilGoodman B1225017 24V Reversing Valve CoilGoodman B1225017 24V Reversing Valve Coil

There are many other types of heating systems. Another common set up is a gas furnace. They are sometimes built into package units. They are easily identifiable with their need for a gas line hooked up to the unit. You will want to make sure the units engage when you call for heating on your thermostat. If you have a gas system you will want to make sure the gas valve is open. The thermostat should engage the furnace. Which will cause gas to engage and get lit by the igniters. Electrical heat strips should engage if they are equipped. If you have a hydronic system. You will want to make sure the water pump engages and flows the water through your coils.

Watts Dormont 30C-3131KIT-48B Complete Gas Range Install Kit 48-Inch LengthWatts Dormont 30C-3131KIT-48B Complete Gas Range Install Kit 48-Inch LengthWatts Dormont 30C-3131KIT-48B Complete Gas Range Install Kit 48-Inch LengthMr. Heater One-Stop Universal Gas-Appliance Hook-Up KitMr. Heater One-Stop Universal Gas-Appliance Hook-Up KitMr. Heater One-Stop Universal Gas-Appliance Hook-Up KitHot Max 24201 Extension/Appliance Hose for Propane or Natural Gas, 25 FeetHot Max 24201 Extension/Appliance Hose for Propane or Natural Gas, 25 FeetHot Max 24201 Extension/Appliance Hose for Propane or Natural Gas, 25 FeetEtekcity Lasergrip 1080 Non-contact Digital Laser Infrared Thermometer Temperature Gun -58℉~1022℉ (-50℃~550℃), Yellow and BlackEtekcity Lasergrip 1080 Non-contact Digital Laser Infrared Thermometer Temperature Gun -58℉~1022℉ (-50℃~550℃), Yellow and BlackEtekcity Lasergrip 1080 Non-contact Digital Laser Infrared Thermometer Temperature Gun -58℉~1022℉ (-50℃~550℃), Yellow and BlackNubee Temperature Gun Non-contact Infrared Thermometer MAX Display & EMS AdjustableNubee Temperature Gun Non-contact Infrared Thermometer MAX Display & EMS AdjustableNubee Temperature Gun Non-contact Infrared Thermometer MAX Display & EMS AdjustableFluke 62 MAX IR Thermometer, Non Contact, -20 to +932 Degree F RangeFluke 62 MAX IR Thermometer, Non Contact, -20 to +932 Degree F RangeFluke 62 MAX IR Thermometer, Non Contact, -20 to +932 Degree F Range

It is a good time to inspect the life of the other working parts of your evap cooler when winterizing it. I usually will replace the pads and possibly the belt at the end of the season if they have mineral build up on them. When winterizing I recommend shutting off the water supply, and removing the drain stem to remove the water from the pan. You can keep the fan plugged in if you would like to use it to bring in fresh air still. This is a good practice to follow because freezing water can shorten your machine’s life.

Clean Machine 120V PumpClean Machine 120V PumpClean Machine 120V PumpDial Manufacturing 5218 1 Pint Cooler Cleaner TreatmentDial Manufacturing 5218 1 Pint Cooler Cleaner TreatmentDial Manufacturing 5218 1 Pint Cooler Cleaner Treatment343434DIAL 51795 In-Line Scale CartridgeDIAL 51795 In-Line Scale CartridgeDIAL 51795 In-Line Scale Cartridge

I hope this article has helped you prepare for winter. Please comment or email if you need some help answering questions.

dollarmech@gmail.com

How to make your AC last longer

How to make your AC last longerAbout 12 years ago, I was “Mr Naive” about AC’s. If you would of asked me how they worked. Then I would’ve said something like “PFM” (pure f*cking magic). Since then I have been to several schools that have taught me the ways of how various refrigeration systems run. They have taught me how to best care for pretty much every type of refrigeration machine you can think of. So, I thought I should pass some of that knowledge on to you guys. In this article I will cover some of the most basic things that you can look at to help make your AC last longer.

It is important to remember to safely turn off the power before reaching your hands around the fan blades or handling the electrical wiring.

Things to look at:

Smarthome Google Home 'works with'

Benefits of Evaporative Coolers

Many people favor evaporative coolers during the early and late summer months in Arizona. They are a great way to cool your home when it’s 80-110 degrees outside. The only real drawback is that they don’t work too well on those high humidity days during the monsoon season. I recommend having an AC as a primary way to cool your home, but having a evap cooler is a wonderful way to help alleviate the steep electricity bills that summer can bring.

77bba64e-936e-4687-adbb-055e4700e26d_1000

The main reason evap coolers are so much cheaper to run than air conditioners is that they only have 1 motor. While most AC’s have 2 motors and a compressor. Most amps are drawn during the startup of the compressor. It is equivalent to stop and go traffic in the city or non stop high way traffic.

Evap coolers use convection to transfer the heat from the outside air to the water that is falling across the pads. They can drop the temperature 25 degrees or more. The higher the humidity in the outside air will cause the cooling efficiency to decrease.

Proper maintenance on swamp coolers is crucial if you expect them to last more than the first season of operation. They are relatively low cost to maintain. If you do it right then you should only have to inspect and maintain your swamp cooler twice a year. Usually done before and after summer. I recommend doing a pre summer inspection during early spring. In Arizona I recommend to start getting your swamp cooler ready in February. I recommend winterizing it before snowfall or if you experience freezing temperatures where you are located.

Several things to take a look at when inspecting your evap cooler.

Smarthome.com - shop now!

Why is my AC leaking water?

People always talk about how Arizona has a dry heat. Well during monsoon season the dry heat becomes a wet heat. Most people don’t even realize how well their air conditioner is working to keep out the humidity until they walk outside of their home. Have you recently asked yourself “why is my AC leaking water?”

13336076_10209853917691167_2895391890897447139_n
Looking for pinholes of leaking refrigerant on a rusty evap coil last year.

Air Conditioners use the condensation method to remove the moisture from the air in your home. The same thing that runs down your cold drink on a warm day. Is also keeping your home at a comfortable humidity range. This is the water you are seeing when you see water pouring from a drain in the side of your home.

If you have a package unit on top of your home. Then you should see a PVC or copper pipe coming from the unit. It should either run off the roof or into some sort of drain. Continuous water should be directed off your roof. It could progress deterioration of your roof over time.

If you have a split unit then you will usually either have an air handler in your attic or a side closet. These kind of units will usually have PVC or copper drains going through a wall to leak the condensation outside or to a separate drain.

Installed 2 new split systems earlier this year. Notice the PVC directing the condensation water to a separate drain.
20170725_153350
New Trane Package Unit on top of a custom curb adapter. Notice the PVC connecting to an existing drain.

It is important to remember that these drains can get clogged over time with dust and it can turn into a sludge. These drains really can cause a problem if they get fully clogged, and if they are located inside your attic. They usually will have a secondary pan underneath the air handler if located in the attic. The pan will mostly always have a PVC or copper drain connected from it to the outside. A lot of people will usually not pay attention to the subtle signs that the condensation is leaking through the emergency drain instead of the primary drain. Once the secondary pan gets clogged as well. They tend to fill up after a few gallons. The water will then ruin your drywall and insulation underneath where unit is located. When looking at the side of your home where the drains are located. The lower drain should be your primary passage for the condensation. If your condensation is leaking through the higher drain. Then you can probably guess that your secondary pan is catching the leaking condensation from your air handler. I immediately suggest you go in the attic to inspect the pan.

If your secondary pan has water in it. Then I suggest you immediately turn off your AC unit to stop adding water to the situation.  I suggest you get a Wet/Dry vacuum to put on the outside drain to try to unclog it. Don’t forget to remove the dust filter inside your wet/dry vac before sucking up water. If you cannot unclog it this way then I suggest going into the attic with your wet/dry vac to remove the obstruction from the drain this way. If you can’t get the drain to clear. Then I suggest you suck the water from the pan before working on the drain lines. It may take you a few trips to safely remove the water without too much damage to your insulation and drywall. Once the pan is clear from water. I recommend you using your wet dry vacuum to make sure the line is clear.

Most the time I will cut the drain line, and I will my pressurized nitrogen bottle to blow about 200 psi though the line. This method is the fastest and will usually take care of the problems for me. I then reconnect the drain line with either a shark bite quick connect fitting if it’s copper line, or I will use PVC coupler and glue. Condensation drain lines are usually 3/4″ but I have seen 1/2″ drain lines before.

I have attached some tools that will help you clear condensation drain lines more efficiently.

RIDGID 32975 Model 103 Close Quarters Tubing Cutter, 1/8-inch to 5/8-inch Tube CutterRIDGID 32975 Model 103 Close Quarters Tubing Cutter, 1/8-inch to 5/8-inch Tube CutterRIDGID 32975 Model 103 Close Quarters Tubing Cutter, 1/8-inch to 5/8-inch Tube CutterRIDGID 31632 Model 151 Quick-Acting Tubing Cutter, 1/4-inch to 1-7/8-inch Tube CutterRIDGID 31632 Model 151 Quick-Acting Tubing Cutter, 1/4-inch to 1-7/8-inch Tube CutterRIDGID 31632 Model 151 Quick-Acting Tubing Cutter, 1/4-inch to 1-7/8-inch Tube CutterK-D Tools 2107 Mini Tubing CutterK-D Tools 2107 Mini Tubing CutterK-D Tools 2107 Mini Tubing CutterPipe and Tube Cutter, Ratcheting Hose Cutter, One-hand Fast Pipe Cutting Tool with Ratchet Drive for Cutting Less Than 1-1/4Pipe and Tube Cutter, Ratcheting Hose Cutter, One-hand Fast Pipe Cutting Tool with Ratchet Drive for Cutting Less Than 1-1/4Pipe and Tube Cutter, Ratcheting Hose Cutter, One-hand Fast Pipe Cutting Tool with Ratchet Drive for Cutting Less Than 1-1/4PVC Pipe Cutters By Haisstronica One-hand Fast pipe cutter tool with Ratchet Drive for Cutting Less Than 1-5/8in(42mm) O.D. PEX, PVC, and PPR PipePVC Pipe Cutters By Haisstronica One-hand Fast pipe cutter tool with Ratchet Drive for Cutting Less Than 1-5/8in(42mm) O.D. PEX, PVC, and PPR PipePVC Pipe Cutters By Haisstronica One-hand Fast pipe cutter tool with Ratchet Drive for Cutting Less Than 1-5/8in(42mm) O.D. PEX, PVC, and PPR PipeStanley Wet/Dry Vacuum, 6 Gallon, 4 HorsepowerStanley Wet/Dry Vacuum, 6 Gallon, 4 HorsepowerStanley Wet/Dry Vacuum, 6 Gallon, 4 HorsepowerShop-Vac 2021000 Micro Wet/Dry VacShop-Vac 2021000 Micro Wet/Dry VacShop-Vac 2021000 Micro Wet/Dry VacVacmaster 2.5 Gallon, 2 Peak HP, Portable Wet/Dry Vacuum, VP205Vacmaster 2.5 Gallon, 2 Peak HP, Portable Wet/Dry Vacuum, VP205Vacmaster 2.5 Gallon, 2 Peak HP, Portable Wet/Dry Vacuum, VP205Vacmaster VFB511B 0201 Beast Series Professional Wet/Dry VacuumVacmaster VFB511B 0201 Beast Series Professional Wet/Dry VacuumVacmaster VFB511B 0201 Beast Series Professional Wet/Dry VacuumUniweld 40040 Nitrogen Sludge Sucker and Blaster Kit with Metal Carrying Stand for 40 Cubic Feet Nitrogen TankUniweld 40040 Nitrogen Sludge Sucker and Blaster Kit with Metal Carrying Stand for 40 Cubic Feet Nitrogen TankUniweld 40040 Nitrogen Sludge Sucker and Blaster Kit with Metal Carrying Stand for 40 Cubic Feet Nitrogen TankDiversiTech CB-2 DrainDawg Condensate Line Drain Cleaning KitDiversiTech CB-2 DrainDawg Condensate Line Drain Cleaning KitDiversiTech CB-2 DrainDawg Condensate Line Drain Cleaning KitNew 20 cu ft Steel Nitrogen Cylinder with CGA580 ValveNew 20 cu ft Steel Nitrogen Cylinder with CGA580 ValveNew 20 cu ft Steel Nitrogen Cylinder with CGA580 ValveFernco 1056-075 Condensate 3/4-Inch plastic or 3/4 and 1-Inch copper Pipe ConnectorFernco 1056-075 Condensate 3/4-Inch plastic or 3/4 and 1-Inch copper Pipe ConnectorFernco 1056-075 Condensate 3/4-Inch plastic or 3/4 and 1-Inch copper Pipe ConnectorPVC Pipe Coupler - Socket / Slip - Schedule 40 - White - 3/4-Inch - Pack of 6PVC Pipe Coupler – Socket / Slip – Schedule 40 – White – 3/4-Inch – Pack of 6PVC Pipe Coupler - Socket / Slip - Schedule 40 - White - 3/4-Inch - Pack of 6SharkBite U016LFA4 Straight Coupling Plumbing Fitting, 3/4 Inch, PEX Fittings, Push-to-Connect, Coupler, Copper, CPVCSharkBite U016LFA4 Straight Coupling Plumbing Fitting, 3/4 Inch, PEX Fittings, Push-to-Connect, Coupler, Copper, CPVCSharkBite U016LFA4 Straight Coupling Plumbing Fitting, 3/4 Inch, PEX Fittings, Push-to-Connect, Coupler, Copper, CPVCSharkBite U3016LFA 3/4-Inch SharkBite Lead Free Repair Slip CouplingSharkBite U3016LFA 3/4-Inch SharkBite Lead Free Repair Slip CouplingSharkBite U3016LFA 3/4-Inch SharkBite Lead Free Repair Slip Coupling

I hope this article has helped you. Please comment or email me if you have any questions.

dollarmech@gmail.com

How to replace a capacitor on an AC

Did your AC stop blowing cold air? Are you dreading to call the AC guy? Did they charge you both arms and legs last time? Fear not! I will show you how to replace a capacitor on your home AC system, and help you save yourself $100-$300 by following these simple instructions. Capacitors are one of the most common things that could go wrong with an AC.

13428496_10209921279775177_7914684635793036046_n

You will need to have the required tools that I mentioned in my other post.

ALWAYS DISCONNECT THE ELECTRICAL POWER BEFORE OPENING THE UNIT!!!

Please always be cautious of the fan blade, and try not getting shocked from the electricity.

Capacitors will hold a charge after the unit is turned off. So avoid touching both the terminals together at the same time. Until you can safely discharge the capacitor by putting the metal part of a screwdriver across the terminals after the unit is turned off.

First sign that a capacitor will need to be replaced is usually the outdoor fan or compressor will not be kicking on. If your outdoor fan motor blade is stuck still when unit should be energized. Then that is a sign that the outdoor fan motor will need to be replaced. Whenever a motor is replaced. I recommend replacing the capacitor along with it. Most residential units will have single phase voltage. That means that both the outdoor fan motor and compressor will have a capacitor for them. Most residential units will use Dual Run Capacitors which is both capacitors built into one. Three phase motors don’t use capacitors.

If you don’t have a microfarad tester built into your multimeter. Then I recommend getting a separate tester for capacitors. It would be a cool tool to lend to your friend if his capacitor went bad on his unit. You can test a capacitor by taking the wires off the terminals. Then put the tester on the terminals. Your tester should read what the capacitor is rated for. So if your capacitor was a 40 microfarads, and the capacitor was reading 36.4. Then your capacitor is bad and needs to be replaced. The capacitors microfarad readings will need to be whatever the motor calls for plus or minus 6%.

Motor Run Capacitor Round 30 uf MFD 370 Volt VAC 12717Motor Run Capacitor Round 30 uf MFD 370 Volt VAC 12717Motor Run Capacitor Round 30 uf MFD 370 Volt VAC 12717PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455GE Genteq Replacement for Capacitor 30/5 uf 370 volt 97F9833, 370V, 30/5 MFD, Dual Run, Round CapacitorGE Genteq Replacement for Capacitor 30/5 uf 370 volt 97F9833, 370V, 30/5 MFD, Dual Run, Round CapacitorGE Genteq Replacement for Capacitor 30/5 uf 370 volt 97F9833, 370V, 30/5 MFD, Dual Run, Round CapacitorTradePro 40+5 uf MFD 370 or 440 Volt Dual Run Round Capacitor Bundle TP-CAP-40/5/440R Condenser Straight Cool/Heat Pump Air Conditioner and Zip TieTradePro 40+5 uf MFD 370 or 440 Volt Dual Run Round Capacitor Bundle TP-CAP-40/5/440R Condenser Straight Cool/Heat Pump Air Conditioner and Zip TieTradePro 40+5 uf MFD 370 or 440 Volt Dual Run Round Capacitor Bundle TP-CAP-40/5/440R Condenser Straight Cool/Heat Pump Air Conditioner and Zip Tie40/5 MFD Multi-Purpose 440 or 370 Volt Round Run Capacitor Replacement TradePro 40+540/5 MFD Multi-Purpose 440 or 370 Volt Round Run Capacitor Replacement TradePro 40+540/5 MFD Multi-Purpose 440 or 370 Volt Round Run Capacitor Replacement TradePro 40+5PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455PACKARD TRCD455 Titan Pro 45+5 MFD 370V Round Run Capacitor Replaces PRCD455MARS - Motors & Armatures 12286 40 + 5 uF MFD x 440 VAC Genteq Replacement Dual CapacitorMARS – Motors & Armatures 12286 40 + 5 uF MFD x 440 VAC Genteq Replacement Dual CapacitorMARS - Motors & Armatures 12286 40 + 5 uF MFD x 440 VAC Genteq Replacement Dual Capacitor10 MFD 440 or 370 Volt Oval Run Capacitor Replacement TradePro 10 microfarads10 MFD 440 or 370 Volt Oval Run Capacitor Replacement TradePro 10 microfarads10 MFD 440 or 370 Volt Oval Run Capacitor Replacement TradePro 10 microfaradsFive Two One Inc CSR-U1 Compressor Saver Hard Start CapacitorFive Two One Inc CSR-U1 Compressor Saver Hard Start CapacitorFive Two One Inc CSR-U1 Compressor Saver Hard Start CapacitorSupco SPP6 Hard Start KitSupco SPP6 Hard Start KitSupco SPP6 Hard Start KitRECTORSEAL 96506 Ks1 Kickstart Hard Start KitRECTORSEAL 96506 Ks1 Kickstart Hard Start KitRECTORSEAL 96506 Ks1 Kickstart Hard Start KitPocket Hose Ultra Expandable, 3X Stronger, 75 FeetPocket Hose Ultra Expandable, 3X Stronger, 75 FeetPocket Hose Ultra Expandable, 3X Stronger, 75 FeetLawnPRO 50’ Expanding Garden Hose. Kink-Free. 5,000 Denier Woven Casing. Copper Fittings. Steel Assembly Clamps. 12 Month Manufacturers Warranty. + Free Storage BagLawnPRO 50’ Expanding Garden Hose. Kink-Free. 5,000 Denier Woven Casing. Copper Fittings. Steel Assembly Clamps. 12 Month Manufacturers Warranty. + Free Storage BagLawnPRO 50’ Expanding Garden Hose. Kink-Free. 5,000 Denier Woven Casing. Copper Fittings. Steel Assembly Clamps. 12 Month Manufacturers Warranty. + Free Storage BagHOAEY 100ft Expanding Hose, Flexible Garden Expandable Water Hose with Pipe Brass Fittings for Car Garden ( 100 Feet )HOAEY 100ft Expanding Hose, Flexible Garden Expandable Water Hose with Pipe Brass Fittings for Car Garden ( 100 Feet )HOAEY 100ft Expanding Hose, Flexible Garden Expandable Water Hose with Pipe Brass Fittings for Car Garden ( 100 Feet )

I know you probably have questions still. So please leave a comment, and I’ll update the article to address them.
